Beyond the Heatmap: A Journalist’s Guide to Investigating and Mapping Wildfires

In an era defined by accelerating climate change and increasingly volatile weather patterns, wildfires have evolved from seasonal occurrences into year-round threats to global ecosystems. For investigative journalists and open-source intelligence (OSINT) researchers, the challenge lies in moving beyond the initial "fire detection" phase. While tools like NASA’s Fire Information for Resource Management System (FIRMS) provide the essential first alert—a heat signature and an approximate coordinate—they tell us nothing of the destruction left in the wake of the flames.

To truly hold authorities to account or to understand the ecological cost of a disaster, one must quantify the scale, assess the burn severity, and place the event within a historical context. This guide explores the methodology for transforming raw satellite data into actionable, evidence-based reporting, using the 2025 wildfires in Sicily’s Zingaro Nature Reserve as a primary case study.

Main Facts: The Zingaro Crisis

In July 2025, a series of devastating wildfires swept across the Capo San Vito peninsula in Sicily, Italy. The fires decimated vast swathes of forest, grasslands, and critical agricultural land. The Zingaro Nature Reserve, a crown jewel of Sicily’s protected coastal areas, bore the brunt of the disaster. The intensity of the blaze was such that significant portions of the reserve remain closed to the public today, serving as a stark reminder of how fragile these ecosystems have become.

By utilizing multispectral satellite imagery from the European Space Agency’s (ESA) Sentinel-2 mission, researchers can reconstruct the "before and after" of such events. This process involves more than just looking at pictures; it requires the manipulation of light bands beyond the visible spectrum to differentiate between healthy vegetation and charred earth.

Chronology: Visualizing the Scorched Earth

When investigating a fire, the first priority is establishing a precise timeline. Using the Copernicus Browser, investigators can access regular, free high-resolution imagery to pinpoint the exact window of devastation.

The Power of False-Color Imagery

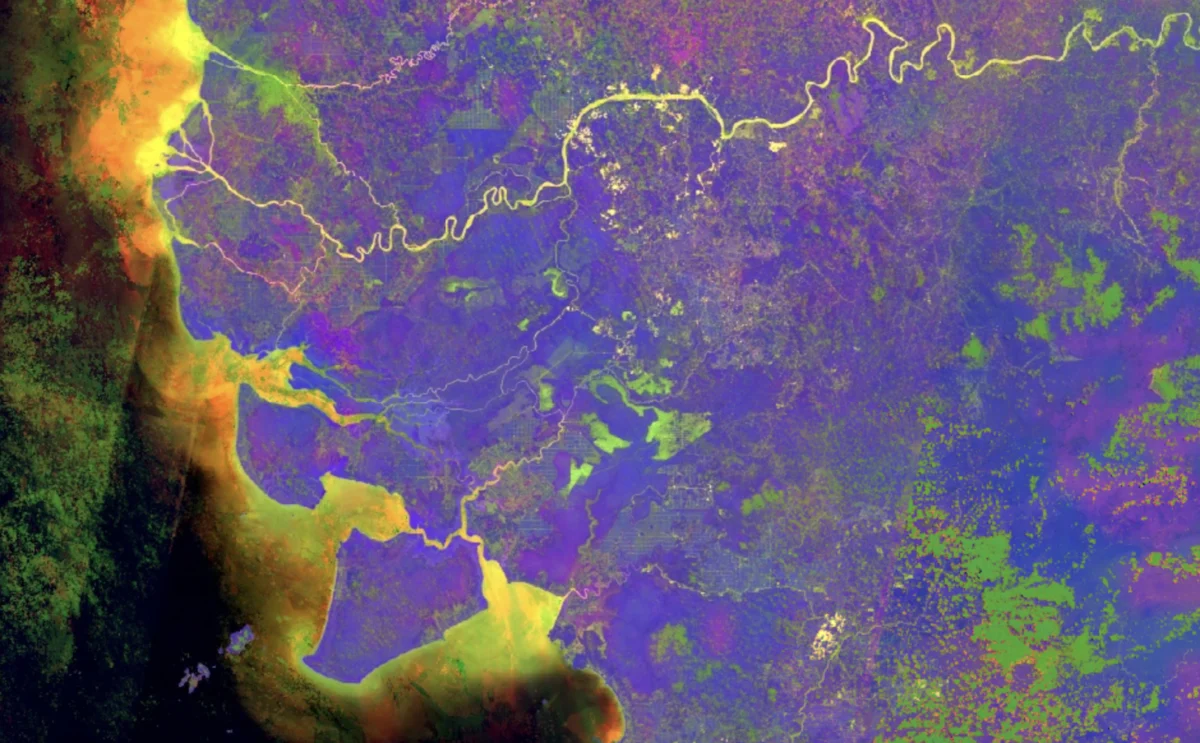

While "true-color" imagery—what our eyes would see from an airplane—can show smoke and some signs of burning, it is often insufficient for determining the full extent of the damage. To gain clarity, we turn to multispectral imaging. By assigning the near-infrared (NIR) band to green and the shortwave infrared (SWIR) band to red, we create a false-color composite.

In this view, healthy, moisture-rich vegetation appears vibrant green, while scorched, dry soil—the signature of a fire—appears as a stark, unmistakable red. By comparing imagery from July 20, 2025, to July 27, 2025, we can definitively report that the wildfire progressed across the Capo San Vito peninsula within that seven-day window.

Supporting Data: Quantifying the Destruction

Visualization is only the beginning. To provide a rigorous, data-driven report, the scorched area must be measured.

The Area of Interest (AOI) Tool

Within the Copernicus Browser, the "Area of Interest" tool allows users to draw a polygon over the affected region. Once the boundary is set, the software calculates the total area in square kilometers. In the case of the Zingaro fire, our analysis determined that over 50 square kilometers were razed.

Assessing Burn Severity with NBR

Not all fires are equal. Some leave the root systems intact, allowing for rapid regeneration, while others sterilize the soil, leading to long-term ecological collapse. This is measured using the Normalized Burn Ratio (NBR).

The NBR is calculated using the formula:
NBR = (NIR – SWIR) / (NIR + SWIR)

By importing these values into QGIS (a free, open-source geographic information system), we can categorize the land into different levels of burn severity—from low to high. Applying this methodology to the Zingaro Reserve, we found that the fire was "moderately severe" by US Forest Service standards, a finding that adds significant weight to any report regarding the long-term viability of the reserve’s habitat.

Official Responses and Conservation Impact

Protected areas are meant to be bastions of biodiversity, but they are often the most vulnerable to climate-driven fires. When a fire strikes a place like Zingaro, the public interest is high, but official information can sometimes be slow or opaque.

By integrating datasets from Protected Planet—a global repository of protected area maps—with our own satellite-derived burn polygons, we can calculate the exact percentage of the reserve lost. In our investigation, we used the Zonal Histogram tool in QGIS to compare the burned pixels against the total area of the reserve. The results were startling: more than 96% of the Zingaro Nature Reserve had been affected by the flames. This empirical evidence provides a powerful basis for questioning land management policies, fire prevention protocols, and the adequacy of local emergency responses.

Implications: The Pattern of Recurrence

A single fire is a tragedy; a series of fires is a systemic failure. To understand the broader implications of the 2025 event, we must look at the historical data. By utilizing the European Forest Fire Information System (EFFIS), which provides fire records dating back to 2008, we can place the 2025 disaster into a longitudinal context.

Identifying Patterns

By importing EFFIS historical shapefiles into QGIS and utilizing the Data Plotly plugin, we can generate a comparative bar chart of fire activity in the reserve over the last decade. Our analysis revealed that the 2025 blaze was not merely an isolated incident but the most severe event in a pattern of recurring fires (with major incidents also occurring in 2017 and 2020).

When we present these findings—that the 2025 event was the largest in a decade-long cycle—the narrative shifts. It is no longer just about a single fire; it becomes a story about climate adaptation, the necessity of improved firebreaks, and the critical need for better forest management in protected areas.

Conclusion: A Tool for Accountability

The ability to analyze wildfire data is a vital skill for modern journalism. By combining freely available satellite imagery (Sentinel-2), powerful GIS software (QGIS), and historical datasets (EFFIS), reporters can move from speculative coverage to definitive, evidence-based investigation.

Whether reporting on wildfires in Sicily, the vast plains of Africa, or the forests of South America, the methodology remains the same:

1. Detect the heat signature.
2. Visualize the burn extent using multispectral bands.
3. Quantify the area using polygons and histograms.
4. Contextualize the event using historical data.

By following these steps, journalists can ensure that the "scorched earth" they document is not just a passing headline, but a recorded fact that demands a response from those in power. As the world grows hotter and the fire risk increases, these digital tools remain our best defense against the erosion of truth and the neglect of our most fragile ecosystems.

For those looking to deepen their investigative capabilities, we recommend exploring the Bellingcat toolkit on QGIS and practicing these methods on recent fire incidents worldwide.
