The Mathematics of Libations: Solving the Classic Water Jug Puzzle with R

In the world of recreational mathematics, few puzzles are as iconic or as enduring as the "Water Jug Problem." Often featured in logic textbooks and popular cinema—perhaps most famously in the 1995 film Die Hard with a Vengeance—the riddle challenges individuals to measure out a specific volume of liquid using only containers of fixed, unequal capacities.

While historically framed as a dry, academic exercise, recent explorations have sought to bridge the gap between abstract number theory and practical, real-world applications. By utilizing the R programming language, developers are now finding that complex problems—such as those involving state-space searches and Bézout’s identity—can be solved with elegance, proving that even the most mundane logic puzzles can serve as a canvas for high-level computational thinking.

The Mathematical Foundation: Bézout’s Identity and GCD

At its core, the water jug problem is a deep dive into the properties of integers. The fundamental question is whether a desired volume can be achieved given the capacities of the available jugs. This is governed by the Greatest Common Divisor (GCD). If you have two jugs with capacities $a$ and $b$, you can measure any quantity that is a multiple of $gcd(a, b)$.

This principle is inextricably linked to Bézout’s identity, a theorem in elementary number theory that states that for any two non-zero integers $a$ and $b$, there exist integers $x$ and $y$ such that:
$ax + by = gcd(a, b)$

In the context of the puzzle, the variables $x$ and $y$ represent the number of times we fill or empty the jugs. If the target amount is not a multiple of the GCD of the two jug capacities, the problem is mathematically impossible to solve. When expanded to algebraic geometry, this concept evolves into finding common zeros of $n$-polynomials in $n$-indeterminates, where the common zeros are determined by the product of the degrees of the polynomials.

While this may sound like heavy lifting, it provides the deterministic bedrock required to build an algorithmic solver. By transforming the "riddle" into a "state-search" problem, we can program computers to navigate the vast tree of possibilities to find the shortest path to our goal.

The Evolution of the Solver: From DFS to BFS

For many years, the standard approach to solving the water jug problem was Depth-First Search (DFS). DFS explores as far as possible along each branch before backtracking. It is a memory-efficient method but does not guarantee the shortest path to a solution.

However, as computational power has scaled, Breadth-First Search (BFS) has become the preferred methodology for this type of puzzle. BFS explores all neighbor nodes at the current depth before moving on to nodes at the next depth level. In the context of the water jug problem, this ensures that the algorithm finds the solution with the fewest number of steps—the most efficient path to the "perfect pour."

The "Beer Giraffe" Challenge: A Practical Application

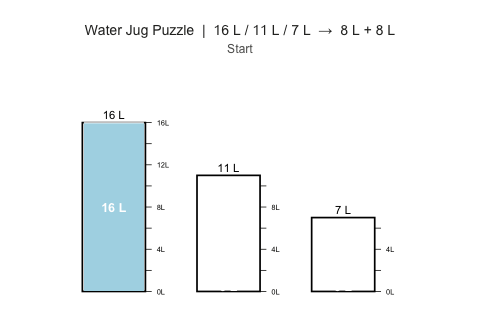

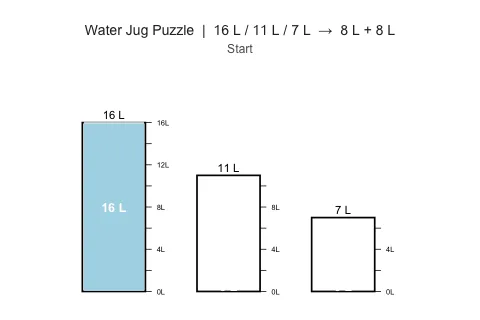

To illustrate the utility of these algorithms in a modern, less academic setting, consider the scenario of a "16L Beer Giraffe"—a large, vertical drink dispenser common in social settings. Imagine you have a 16-liter total capacity, but you are tasked with splitting it into two equal 8-liter portions using only an 11-liter and a 7-liter container.

This is where the intersection of programming and "libation logic" shines. By defining the states (the current volume in each of the three containers), we can use R to iterate through every possible pour, transfer, and refill. It serves as a lighthearted, yet technically robust, proof that mathematics—and by extension, programming—can make even the most daunting organizational tasks significantly more engaging.

Implementing the Solution in R

To solve the 16-11-7 problem, we can construct an R function that manages a queue of states. Each state is tracked as a vector of current volumes. The algorithm prevents infinite loops by maintaining a "visited" list, ensuring that the computer does not waste cycles re-calculating previously discarded configurations.

The Code Implementation

solve_jugs <- function(caps = c(16, 11, 7), start = c(16, 0, 0), goal = c(8, 8, 0))
  # Initialize the queue for BFS
  queue   <- list(list(state = start, path = list(start)))
  visited <- list()
  key     <- function(s) paste(s, collapse = "-")

  while (length(queue) > 0)
    node  <- queue[[1]]
    queue <- queue[-1]
    s     <- node$state

    # Check if goal is reached
    if (isTRUE(all(s == goal))) return(node$path)
    if (!is.null(visited[[key(s)]])) next
    visited[[key(s)]] <- TRUE

    # Iterate through all possible pours
    n <- length(s)
    for (from in 1:n)
      for (to in 1:n)  s[from] == 0


  NULL

Chronology of the Solution

Running the script provided above yields a clear, step-by-step resolution to the 16L/11L/7L puzzle. The algorithm identifies the following sequence:

1. Initial State: 16, 0, 0
2. Pour 1: 5, 11, 0 (Transferring 11L from the 16L jug)
3. Pour 2: 5, 4, 7 (Transferring 7L from the 11L jug)
4. Pour 3: 12, 4, 0 (Pouring 7L back into the 16L jug)
5. Pour 4: 12, 0, 4 (Moving the 4L from the 11L jug to the 7L jug)
6. Pour 5: 1, 11, 4 (Filling the 11L jug from the 16L jug)
7. Pour 6: 1, 8, 7 (Filling the 7L jug to capacity)
8. Final State: 8, 8, 0 (The goal is achieved)

Implications for Algorithmic Thinking

The significance of this exercise extends far beyond the simple manipulation of liquids. It highlights the importance of state-space search in software engineering. Whether one is optimizing logistics for a supply chain, routing packets in a network, or solving a logic puzzle, the ability to represent a problem as a series of states and transitions is a fundamental skill.

Furthermore, this experiment demonstrates the versatility of R. Often pigeonholed as a tool strictly for statistical analysis and data visualization, R possesses a robust capacity for general-purpose programming. The ability to handle lists, recursive structures, and complex logic allows developers to prototype solutions for problems that would otherwise require lower-level languages like C++ or Java.

Official Perspectives and Community Reception

The R-bloggers community and contributors like TomazTsql have long championed the "useless-useful" function philosophy. The idea is that by stripping away the pressure of professional production, developers are free to experiment with creative, abstract coding challenges.

Critics of this approach might argue that such puzzles are trivial, yet the pedagogical value is immense. By working through these problems, junior developers learn to manage memory, handle edge cases, and think about computational complexity. The positive reception of the "Water Jug Solver" indicates that there is a significant appetite within the data science community for content that is both intellectually rigorous and genuinely entertaining.

Conclusion

The water jug puzzle serves as a perennial reminder that mathematics is not merely a collection of numbers, but a language of relationships. When we combine this with the power of modern programming, we find that the most complex-looking puzzles can be broken down into simple, manageable steps.

As we look toward future developments in automated problem solving, the lessons learned from these simple BFS implementations will continue to inform how we approach data, logic, and even our leisure time. Whether you are splitting a beer in a 16-liter giraffe or optimizing an enterprise-level database, the underlying principles of state-space search remain the same. Stay curious, keep exploring the limits of your chosen language, and, as the enthusiasts suggest, keep your code clean and your mind hydrated.
