Visualizing the Invisible: Tracking North American Wildfire Smoke with R and NOAA Data

In an era where wildfire seasons are growing longer and more intense, the ability to monitor the movement of smoke across the continent has transitioned from a niche meteorological interest to a critical public health necessity. For data scientists, researchers, and concerned citizens, the capacity to visualize this data in real-time offers a vital perspective on environmental shifts.

Thanks to the National Oceanic and Atmospheric Administration’s (NOAA) Hazard Mapping System (HMS), daily satellite-derived smoke data is now accessible as open-source GIS shapefiles. By leveraging the R programming language—specifically the sf (Simple Features) and ggplot2 libraries—it is possible to transform complex satellite imagery into actionable, high-resolution maps. This article explores the mechanics of accessing this data, the technical nuances of rendering it, and the importance of interpreting these plumes in the context of broader air quality concerns.

The Data Source: NOAA’s Hazard Mapping System

The Hazard Mapping System (HMS), managed by the National Environmental Satellite, Data, and Information Service (NESDIS), serves as the backbone of North American fire monitoring. Each day, expert human analysts review GOES satellite imagery to trace the contours of smoke plumes as they drift across the continent.

Unlike automated sensor networks that may struggle with cloud cover or terrain, the HMS approach relies on trained eyes to distinguish smoke from atmospheric haze or cloud structures. The output is a series of polygons representing these plumes, categorized by three levels of density: Light, Medium, and Heavy. These polygons are packaged into standardized shapefiles, which are published to a predictable, date-indexed URL structure. Because the filenames are determined by the calendar date (e.g., hms_smokeYYYYMMDD.zip), developers can programmatically fetch the most recent data without manual intervention.

The Technical Workflow: From URL to Visualization

The workflow for creating a real-time smoke map in R is remarkably efficient. By using the sf package to handle spatial data and ggplot2 for visualization, a complete, automated mapping pipeline can be constructed in roughly 30 lines of code.

1. Programmatic Data Acquisition

The process begins by generating the URL for the current date using Sys.Date(). Because HMS analysis for a given day is typically finalized the following morning (Eastern Time), it is essential to implement a robust helper function that can "look back" in time. If a file for today is missing, the script should automatically query the previous day’s archive, ensuring the code does not fail due to a momentary delay in data publication.

2. Processing and Cleaning

Once downloaded and unzipped, the shapefile is read into the R environment. Analysts must be mindful of the Coordinate Reference System (CRS). HMS data typically arrives in the WGS 84 (EPSG:4326) format, which is the standard latitude/longitude system.

Before plotting, the data requires a "tidying" phase. Because the polygons are hand-traced, they may occasionally contain self-intersecting geometries that can break rendering engines. Using the st_make_valid() function is a best practice to rectify these topological errors. Furthermore, converting the Density attribute into an ordered factor ensures that, when plotting, "Heavy" plumes can be rendered as a top layer, providing a clearer visual hierarchy of the smoke’s intensity.

Mapping the Plumes: A Geographic Overview

To generate the final map, the maps package provides the necessary state-level boundaries for the United States. A critical step in the visualization process is the application of a bounding box. By cropping the global smoke data to the lower 48 states, the visualization avoids being overwhelmed by plumes originating in northern Canada or over the Atlantic and Pacific oceans, allowing the user to focus on domestic impacts.

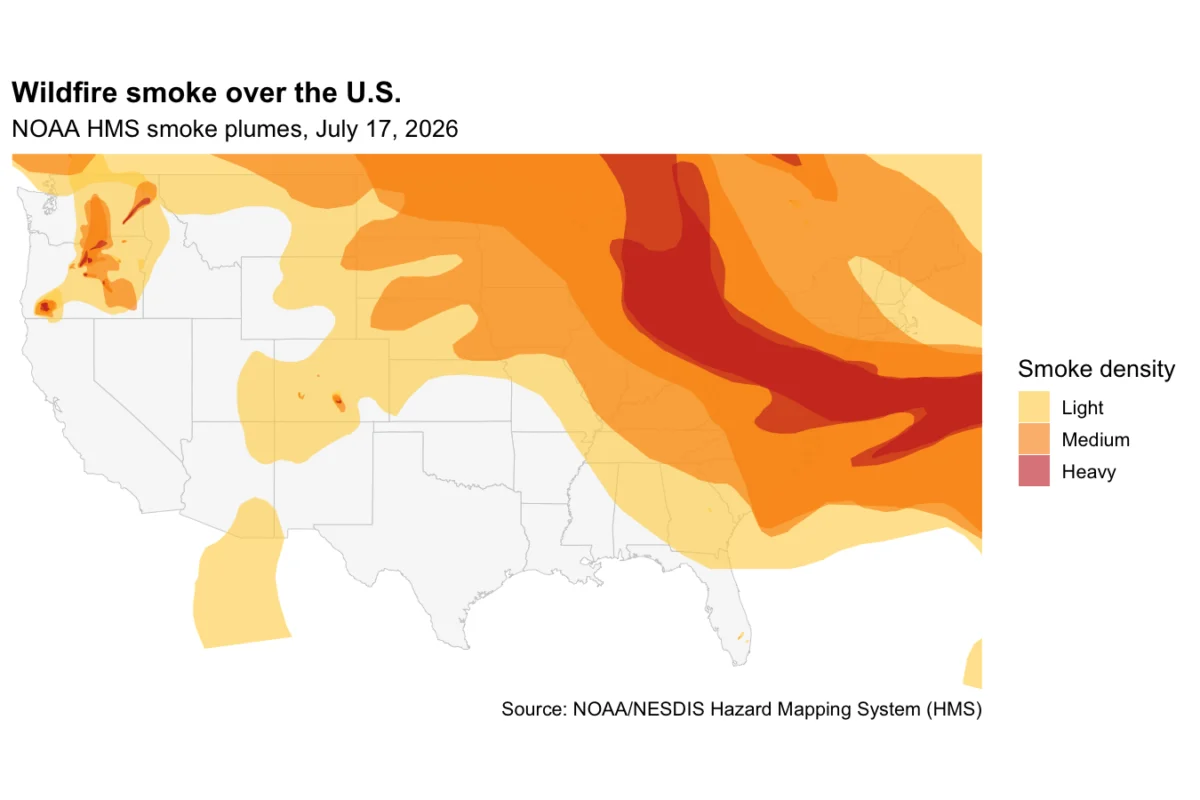

When visualized, the colors serve as a heat map of atmospheric burden. A semi-transparent overlay of red, orange, and yellow polygons—representing Heavy, Medium, and Light density, respectively—reveals not just the current location of the smoke, but the history of its transport. Where polygons stack and overlap, the map darkens, indicating areas where the smoke is most concentrated.

The Importance of Spatial Data Integrity

The accuracy of this map depends heavily on the sf object structure. Each feature contains metadata, including the satellite source and the specific start and end times of the observation in a YYYYDDD HHMM (day-of-year) format. While the casual user might only focus on the visual plume, the researcher can use this temporal data to model how quickly smoke spreads from a fire front to an urban population center.

By automating this process, the resulting maps are never "hard-coded." Every time the script is executed, it pulls the most recent data, providing a dynamic reflection of current atmospheric conditions. This makes it an ideal tool for dashboarding, journalism, or longitudinal climate studies.

Caveats and Clinical Context: Smoke Aloft vs. Surface Air

While the HMS map is a powerful tool for visualizing smoke transport, it is essential to understand its limitations. HMS tracks smoke aloft—at any altitude—which means a "Heavy" plume displayed on the map may exist five kilometers above the ground, leaving the air we breathe at the surface relatively clear.

Conversely, there are instances where low-lying smoke may be less visible to satellites if it is trapped under a temperature inversion or mixed with cloud cover. Therefore, the HMS map should not be viewed as a definitive guide to local air quality. For a more complete picture, researchers must cross-reference this satellite data with ground-level particulate matter (PM2.5) readings from the EPA/USFS AirNow Fire and Smoke Map. The integration of satellite-derived transport data with ground-level sensor data provides the most accurate assessment of public health risk.

Implications for Climate Policy and Public Safety

The ability to map wildfire smoke in real-time has profound implications for public safety. As wildfires become more frequent and move closer to urban interfaces, municipal governments rely on these visualizations to trigger air quality alerts, school closures, and evacuation warnings.

Furthermore, the longitudinal study of these smoke plumes provides critical evidence for climate policy. By analyzing the frequency and density of smoke events over several years, scientists can track the impact of warming trends on forest health and fire severity. The democratization of this data—making it available to anyone with basic R knowledge—ensures that the public and private sectors are working from the same source of truth.

Conclusion: Empowering the Data-Driven Response

The transition from raw satellite data to a clear, visual map is a testament to the power of open-source tools. By automating the retrieval and processing of NOAA’s HMS smoke data, researchers can bridge the gap between complex meteorological science and actionable public information.

Whether you are a developer looking to build a dashboard or a scientist tracking long-term trends, the combination of sf, ggplot2, and the robust HMS archive provides a scalable and reliable foundation for monitoring the shifting environment. As we look toward a future where wildfire smoke becomes an increasingly common feature of the North American summer, these technical skills will remain essential for communicating risk and ensuring public safety in a changing climate.

This technical overview highlights how open data, paired with modern analytical tools, allows us to better understand and visualize the environmental challenges of our time.
