Beyond the ROC-AUC: A Deep Dive into Model Performance, Calibration, and Decision Curve Analysis

In the world of machine learning and binary classification, the Receiver Operating Characteristic Area Under the Curve (ROC-AUC) has long reigned supreme. From medical diagnostics to credit default prediction, data scientists routinely look to a model’s ROC-AUC as the ultimate litmus test of quality. A higher score is universally celebrated as better, with metrics approaching 1.0 signaling a predictive triumph.

However, reliance on a single metric often obscures critical operational flaws. Blindly trusting an ROC-AUC score can lead practitioners into dangerous traps, particularly when dealing with class imbalance, poor probability calibration, or real-world decision-making constraints.

To bridge the gap between abstract mathematical performance and pragmatic utility, data scientists must look past standard metrics. This article explores the mechanics of ROC-AUC, examines its blind spots through low-prevalence scenarios and calibration shifts, and introduces Decision Curve Analysis (DCA) as a superior framework for evaluating clinical and business utility.

1. The Anatomy of ROC-AUC: Origins and Mechanics

Historical Context and Definition

The Receiver Operating Characteristic curve originated not in Silicon Valley boardrooms or academic computer science labs, but on the battlefields of World War II. Developed in 1941 by electrical and radar engineers, the ROC curve was initially designed to help operators distinguish between genuine enemy aircraft blips and environmental noise on radar screens.

Decades later, the methodology migrated into medicine, psychology, machine learning, and finance. The ROC curve plots a binary classification model’s performance across all possible classification thresholds. The y-axis maps the Sensitivity (True Positive Rate), while the x-axis displays 1 – Specificity (False Positive Rate). Mathematically, it represents the cumulative distribution function (CDF) of detection probabilities versus the CDF of false alarm probabilities.

Building ROC-AUC From Scratch

To truly understand how ROC-AUC behaves, it helps to build the calculation from the ground up. Consider a simulated dataset with balanced positive and negative cases:

library(tidyverse)

set.seed(1)
n_neg <- 15
n_pos <- 15
score_neg <- rnorm(n_neg, mean = 3, sd = 1)
score_pos <- rnorm(n_pos, mean = 5, sd = 1)
df <- tibble(
  y_true  = c(rep(0, n_neg), rep(1, n_pos)),
  y_score = c(score_neg, score_pos)
)

The evaluation procedure requires two main steps:

1. Sort predicted scores in descending order and assign each unique score as a potential classification threshold.
2. Calculate TPR and FPR for every single threshold by iterating through the dataset.

threshold_vec <- df |> arrange(desc(y_score)) |> pull(y_score)

true_pos_vec <- false_pos_vec <- vector(mode = "numeric", length = length(threshold_vec))

for (i in 1:length(threshold_vec))
  tp_sum <- 0
  fp_sum <- 0
  for (j in 1:nrow(df))
    y_true_j <- df[[j, "y_true"]]
    y_score_j <- df[[j, "y_score"]]
    if (y_score_j >= threshold_vec[i] & y_true_j == 1)  tp_sum <- tp_sum + 1
    if (y_score_j >= threshold_vec[i] & y_true_j == 0)  fp_sum <- fp_sum + 1

  true_pos_vec[i] <- tp_sum
  false_pos_vec[i] <- fp_sum


df_auc <- df |>
  arrange(desc(y_score)) |>
  mutate(tp = true_pos_vec,
         fp = false_pos_vec,
         fn = sum(y_true == 1) - tp,
         tn = sum(y_true == 0) - fp,
         tpr = tp / (tp + fn),
         fpr = fp / (fp + tn))

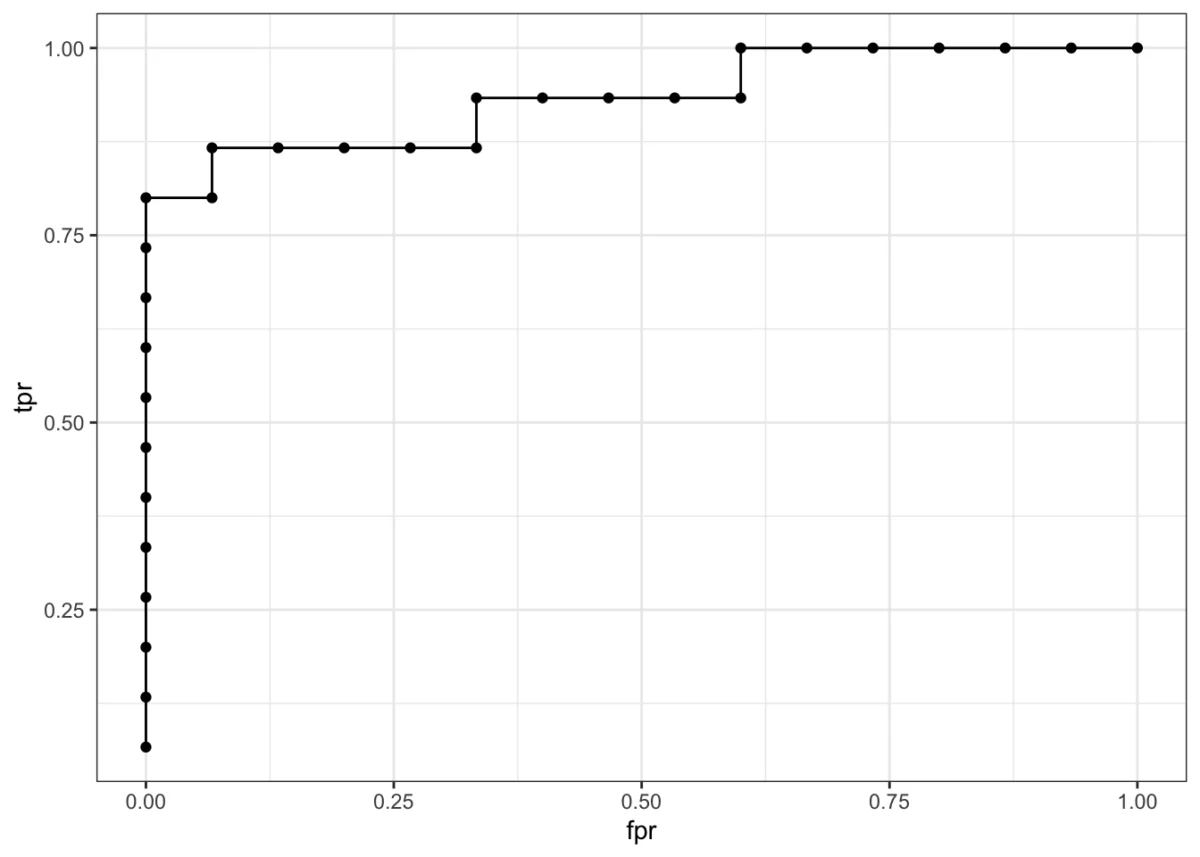

By integrating the area under this curve using trapezoidal geometry, we compute the final ROC-AUC score:

df_auc |>
  mutate(test = abs(lag(fpr, default = 0) - fpr),
         area = test * tpr) |>
  mutate(auc = sum(area)) |>
  distinct(auc) |&>
  pull()
## [1] 0.9333333

Achieving an ROC-AUC of 0.93 indicates strong rank-ordering capability. To find the optimal decision boundary, data scientists frequently rely on the Youden-J index, defined as $textSensitivity + textSpecificity – 1$. Maximizing this index yields a balanced operational threshold.

2. Blind Spots and Pitfalls of ROC-AUC

Despite its ubiquity, ROC-AUC suffers from severe structural vulnerabilities that can mislead even experienced practitioners.

The Low-Prevalence Trap

Consider what happens when the class distribution shifts from balanced to severely imbalanced—a common occurrence in rare disease screening or fraud detection. Simulating a dataset with 99 negative cases and only 1 positive case yields surprising results:

# Setting n_neg to 99 and n_pos to 1
## [1] "ROC-AUC: 0.94949494949495"
## [1] "J: 0.95; sensitivity: 1; specificity: 0.95; ppv: 0.17; npv: 1"

While the ROC-AUC remains remarkably high at nearly 0.95, and the sensitivity and specificity look stellar, the Positive Predictive Value (PPV) plummets to 0.17. This means that roughly 83% of flagged positive cases are false alarms. In high-stakes environments like oncology screening or security operations, a high ROC-AUC can mask an unacceptably high rate of false positives.

Miscalibration: Same AUC, Vastly Different Models

Another hidden flaw of ROC-AUC is its complete insensitivity to probability calibration. An ROC curve cares only about the relative ranking of predictions, not their absolute numerical values.

To demonstrate this, we can simulate 3,000 samples and evaluate four distinct model variants: a well-calibrated reference model, a biased model (intercept shift), an overconfident model (slope compression), and an underconfident model (slope stretching).

set.seed(1)
n <- 3000
true_logit <- rnorm(n)
true_prob  <- plogis(true_logit)
y_true     <- rbinom(n, 1, true_prob)

df <- tibble(y_true, true_logit) |>
  mutate(
    pred_wellcal    = plogis(true_logit),
    pred_biased     = plogis(true_logit + 1.0),
    pred_overconf   = plogis(true_logit * 3),
    pred_underconf  = plogis(true_logit * 0.4)
  )

Evaluating the ROC-AUC across all four models reveals an identical score of 0.740. Yet, their operational behavior is radically different.

To unpack these differences, practitioners use Cox calibration regression—fitting a logistic regression model where the true labels are regressed against the logit of the predicted probabilities:

cox_calib <- function(y, p)
  logit_p <- qlogis(pmin(pmax(p, 1e-6), 1 - 1e-6))
  fit <- glm(y ~ logit_p, family = binomial)
  tibble(intercept_a = coef(fit)[1], slope_b = coef(fit)[2])

• Well-calibrated model: Intercept $approx 0$, Slope $approx 1$
• Biased model: Intercept deviates significantly from $0$ (horizontal shift)
• Overconfident model: Slope $< 1$ (predictions pushed toward 0 and 1)
• Underconfident model: Slope $> 1$ (predictions clustered near 0.5)

The Brier score ($textMean((p – y)^2)$) further confirms these variations, returning different calibration penalties for models that share an identical ROC-AUC.

3. Decision Curve Analysis: Moving Beyond Performance to Utility

Even a pristine calibration plot cannot answer the fundamental business or clinical question: Is using this model actually better than default strategies like treating everyone or treating no one?

This is where Decision Curve Analysis (DCA) becomes essential. DCA evaluates the net benefit of a predictive model across a spectrum of decision thresholds, factoring in the relative cost of false positives versus false negatives.

The Net Benefit Equation

The core premise of DCA is that every classification model implies a decision rule: "If predicted risk $ge p_t$ (threshold probability), take clinical or operational action."

$$textNet Benefit = left(fractextTrue Positivesnright) – left(fractextFalse Positivesnright) times left(fracp_t1 – p_tright)$$

The term $fracp_t1 – p_t$ acts as an exchange rate or harm-weighting factor. It translates false positives into "true-positive equivalents." A net benefit of 0.30 means that using the model yields the net equivalent of 30 correctly identified true cases per 100 patients, after penalizing for generated false positives.

Comparing Logistic Regression to Tuned XGBoost

To see DCA in action, consider a non-linear data-generating process where simple linear models struggle. We train a standard logistic regression model and a hyperparameter-tuned XGBoost model on a simulated non-linear dataset:

# ---- Nonlinear Data Simulation ----
set.seed(1)
n <- 3000
x1 <- rnorm(n)
x2 <- rnorm(n)
true_logit <- 0.8*x1^2 - 1.2*x2 + 1.5*sin(x1*x2) - 0.5
true_prob  <- plogis(true_logit)
y_true     <- rbinom(n, 1, true_prob)
df <- tibble(y_true, x1, x2)

When evaluating performance metrics on the test set:

• Logistic Regression AUC: 0.710 | Brier Score: 0.216
• Tuned XGBoost AUC: 0.762 | Brier Score: 0.198

XGBoost successfully captures the non-linear feature interactions, resulting in superior discrimination and lower calibration error.

Interpreting the Decision Curve

When plotting Decision Curve Analysis curves across threshold probabilities ranging from 0.01 to 0.70, the practical advantages of the models become clear.

net_benefit <- function(y, p, pt)
  treat <- p >= pt
  tp <- sum(treat & y == 1); fp <- sum(treat & y == 0); n <- length(y)
  (tp/n) - (fp/n) * (pt/(1-pt))


thresholds <- seq(0.01, 0.7, by = 0.01)

dca_df <- tibble(pt = thresholds) |&>
  mutate(
    nb_logistic  = map_dbl(pt, ~ net_benefit(test$y_true, test$pred_logit, .x)),
    nb_xgboost   = map_dbl(pt, ~ net_benefit(test$y_true, test$pred_xgb, .x)),
    nb_treatall  = mean(test$y_true) - (1 - mean(test$y_true)) * (pt/(1-pt)),
    nb_treatnone = 0
  )

At a threshold probability of 0.40—meaning a decision-maker is comfortable screening 10 individuals to catch at least 4 true positives—the XGBoost model delivers a net benefit of roughly 0.28. This significantly outperforms both the logistic regression model and naive strategies ("Treat All" and "Treat None").

4. Key Takeaways and Best Practices

Relying exclusively on ROC-AUC exposes analytical pipelines to uncalibrated predictions, false-positive blindness, and misallocated resources. To build robust, trustworthy machine learning models, practitioners should adopt a multi-layered evaluation strategy:

1. Never rely on ROC-AUC alone: Always inspect the confusion matrix across multiple operating thresholds.
2. Examine Calibration Curves: Use binning and Cox calibration regression (intercept $a approx 0$, slope $b approx 1$) to verify that predicted probabilities match empirical event rates.
3. Incorporate Decision Curve Analysis: Map model performance directly to operational preferences and cost-benefit tradeoffs. DCA ensures that the models deployed in production deliver true net value compared to naive baselines.

By moving beyond simple discrimination metrics toward calibration and net benefit analysis, data scientists can build models that not only rank order data effectively, but also drive optimal, high-impact decision-making.
